01 / CELLULAR
Stay reachable over 4G LTE.
Dual-SIM global 4G LTE can provide primary or secondary WAN connectivity while preserving a separate out-of-band access path.
Cellular Gateway Platform
Duckfone®Cellular Gateway
Compact cellular resilience for branch, edge, and remote infrastructure. Duckfone combines dual-SIM global 4G LTE, four serial console ports, Gigabit Ethernet, PoE+ power, secure remote access, and Total Out-of-Band® management in one field-ready appliance.
4Serial Ports
Dual SIMSoftware Selectable
Global 4G LTECellular
PoE+Power Input
1 GbEEthernet
0.66 lbCompact Weight
Compact Cellular OOB
Small footprint.
Serious recovery path.
Duckfone is designed for locations where rack-scale hardware is unnecessary but reliable remote connectivity is essential. It gives network teams a practical way to reach routers, switches, firewalls, and serial-managed equipment when the primary network is unavailable or difficult to access.
02 / CONSOLE
Recover four serial devices.
Four RJ45 RS-232 Cisco straight serial ports provide direct console access to critical infrastructure.
03 / INSTALL
Deploy with PoE+ simplicity.
Power and Ethernet through a single PoE+ connection support flexible placement at branch, edge, and remote sites.
04 / CONTROL
Operate locally or centrally.
Manage Duckfone through Gearlinx ZERO for centralized visibility, access, lifecycle management, warranty, and support. Local WebUI and CLI remain available for device-level administration.
Product Anatomy
Purpose-built for branch and edge deployment.
The compact chassis keeps the physical deployment simple while providing cellular connectivity, Ethernet, serial console access, dual SIM flexibility, and GPS antenna support.

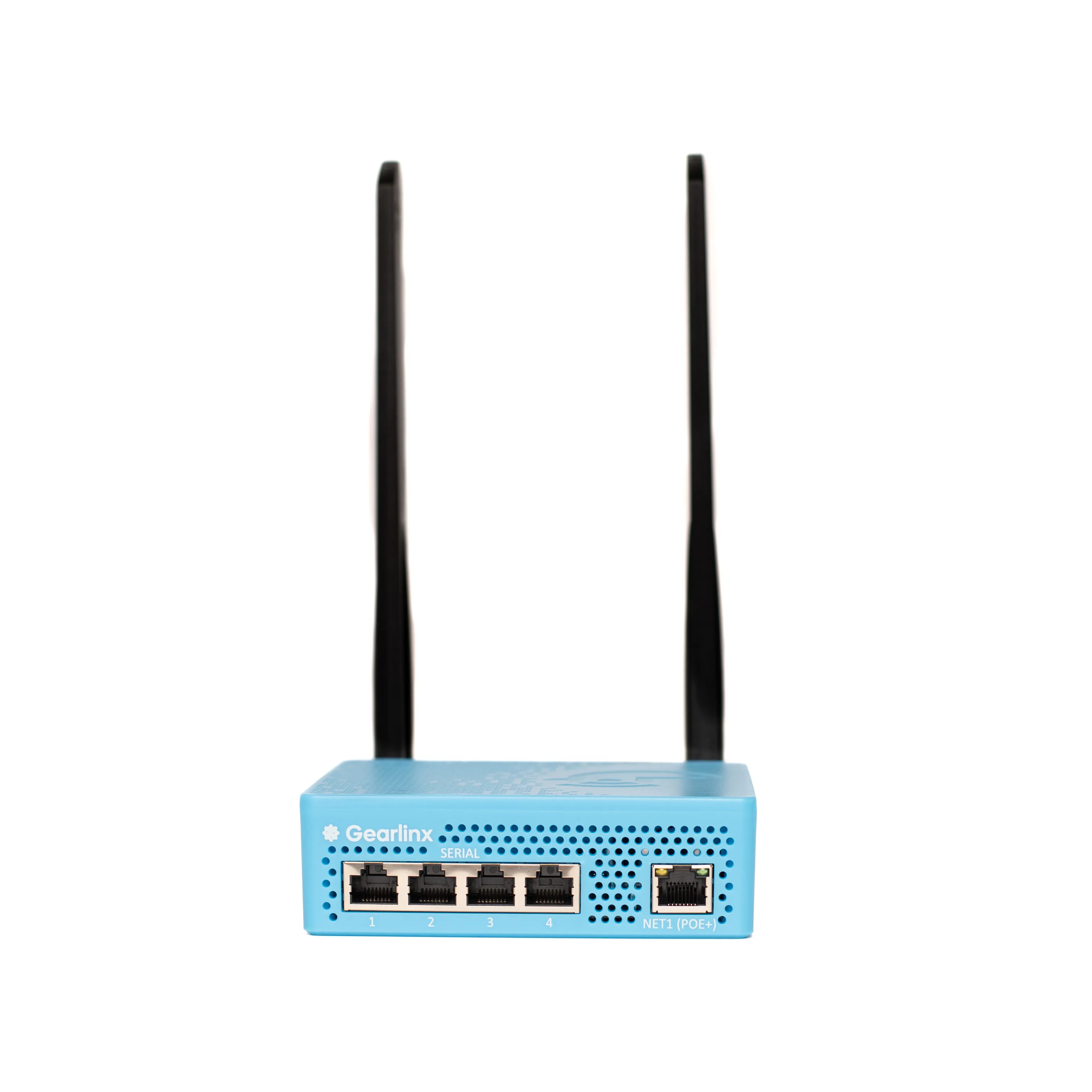

Console + Ethernet Side4 × serial console
1 × Gigabit Ethernet / PoE+
1 × Gigabit Ethernet / PoE+

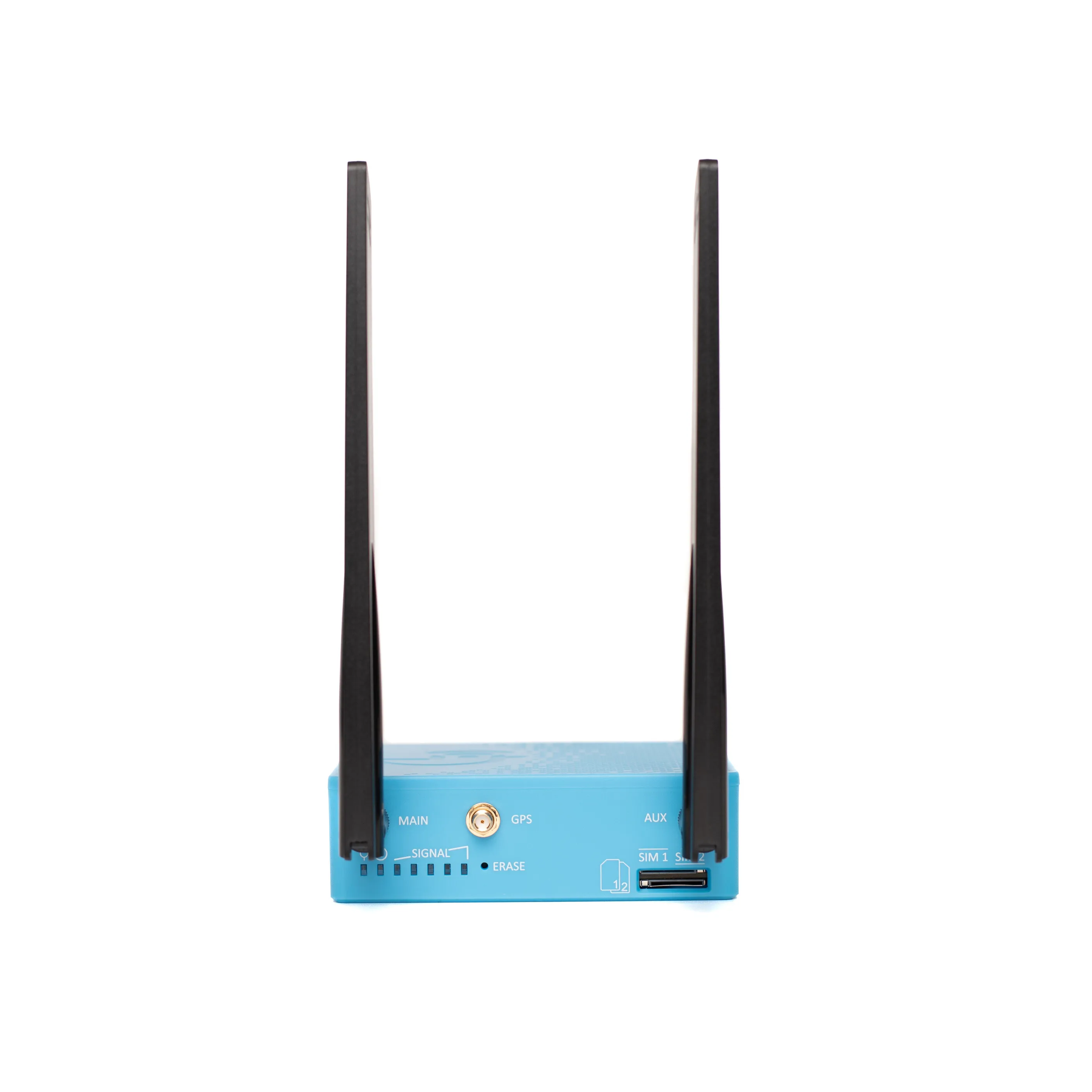

Cellular SideDual LTE antennas
Dual SIM + GPS connector
Dual SIM + GPS connector
4 × RJ45RS-232 Cisco straight serial console ports
1 × 1GbE10/100/1000 Ethernet interface
Dual SIMSoftware-selectable carrier flexibility
PoE+Power input for installation flexibility
GPSDedicated SMA antenna connector
Core Capabilities
Cellular access without the rack-scale footprint.
Duckfone is focused on the capabilities distributed sites need most: connectivity, console recovery, secure access, flexible deployment, and automation.
Cellular Continuity
Global 4G LTE with dual SIM provides a separate cellular path for primary or secondary WAN connectivity and out-of-band access.
Direct Console Recovery
Four serial ports give administrators direct access to routers, switches, firewalls, and other serial-managed infrastructure.
PoE+ Deployment
Power over Ethernet supports simple installation in locations where adding a dedicated power outlet is inconvenient.
Secure Remote Access
WireGuard VPN, TACACS+, RADIUS, Active Directory/OpenLDAP, local fallback, and OpenID-based SSO support secure administration.
Automation & Provisioning
Zero Touch Provisioning and REST API capabilities help teams standardize deployment and management workflows.
Centralized Management
Gearlinx ZERO provides the centralized management layer for Duckfone, bringing device access, visibility, lifecycle management, warranty, and support into one operational experience.
How Duckfone Works
A separate cellular path to the infrastructure that matters.
Duckfone can use Ethernet or cellular connectivity and can provide remote access to connected serial infrastructure when the primary network is unavailable.
Duckfone is managed through Gearlinx ZERO for centralized access and operational visibility, while supported local methods such as WebUI, SSH, and CLI remain available for device-level administration.
ZERO is the standard management platform for Duckfone, providing centralized access, fleet visibility, lifecycle management, warranty, and support across deployments.
Gearlinx ZEROCentralized management • warranty • support
↓
Network / IT OperationsSecure remote administration
→
Duckfone®4G LTE • Total OOB • Serial Console • PoE+
→
Remote InfrastructureRouters • Switches • Firewalls • Serial Devices
Flexible Operating Modes
One appliance. Multiple ways to keep a site connected.
Duckfone can be deployed as a cellular gateway, a four-port serial out-of-band appliance, or as part of a wired/cellular failover strategy.
Cellular Gateway + Console Safety Net
Use cellular connectivity for the network device while connecting serial console ports to the same device and other critical infrastructure for recovery access.
Standalone 4-Port OOB
Use Duckfone as a compact out-of-band management appliance with Ethernet and serial services for branch and remote infrastructure.
Wired + Cellular Resilience
Use Ethernet as the normal WAN path with cellular as a secondary path, or use cellular as the primary path, depending on the site design.
Where Duckfone Fits
Built for infrastructure outside the data center.
Duckfone is strongest where space is limited, on-site IT support is scarce, and a network interruption can quickly turn into an expensive truck roll.
Branch offices, stores, and pop-up locations
Kiosks, ATMs, and digital signage
Unmanned sites, cabinets, and edge locations
Video cameras and smart-building infrastructure
Day-1 connectivity and temporary sites
Primary or secondary cellular WAN connectivity
1.57 × 4.84 × 4.80 inCompact dimensions
300 gProduct weight
-5°C to 50°COperating range
150,000 hrsMTBF
Managed with ZERO
Centralized management for every Duckfone deployment.
Gearlinx ZERO is the centralized management platform for Duckfone, giving teams one place to access devices, manage deployments, maintain lifecycle visibility, and support warranty and subscription operations across locations.
Explore ZERO →
Technical Specifications
Engineering detail when you need
it.
Serial ports4 × RJ45 RS-232 Cisco straight serial ports
Ethernet1 × 10/100/1000 Gigabit Ethernet
Power inputPower over Ethernet (PoE+)
Local managementWebUI (HTTP/HTTPS), CLI (SSH, serial port)
CellularIntegrated dual-SIM global 4G LTE
SIM slots2 × Mini-SIM (2FF), software-selectable / hardware-switchable
LTE connectors2 × 50 Ω SMA
GPS1 × SMA connector
LTE-FDDB1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
LTE-TDDB38/B39/B40/B41
WCDMA / GSMWCDMA B1/B2/B4/B5/B6/B8/B19; GSM B2/B3/B5/B8
VPNWireGuard
AAATACACS+, RADIUS, Active Directory/OpenLDAP, local fallback
SSOOpenID single sign-on through ZERO
Software featuresGearlinux, Total Out-of-Band®, Modern Enterprise GUI/CLI, IPv4/IPv6, serial logging, OpenID SSO
AutomationZero Touch Provisioning, REST API
Remote managementGearlinx ZERO cloud portal; SNMP v3
ProtocolsSNMP, SSH, DHCP, LLDP, ZTP, HTTPS, NTP
CPUQualcomm, single application core, 1.3 GHz
Memory256 MB RAM
Internal storage50 MB
Operating temperature-5°C to 50°C / 23°F to 122°F
Storage temperature-30°C to 60°C / -22°F to 140°F
Humidity5% to 95% non-condensing
CoolingPassive
MTBF150,000 hours
Dimensions1.57 × 4.84 × 4.80 in / 4 × 12.3 × 12.2 cm
Weight0.66 lb / 300 g
Cellular approvalsPTCRB, GCF, AT&T, Verizon, T-Mobile, Canada
Emissions / complianceFCC Part 15 Subpart B Class A, CE, RCM, CAN ICES-3 (B)/NMB-3 (B), RoHS
Product Configuration
One focused model for compact
cellular OOB.
ModelDuckfone-4-GLB
Serial4 × RJ45
Ethernet1 × 1GbE
CellularGlobal 4G LTE
PowerPoE+
ORAAS Licensing
Choose the lifecycle term that fits
your deployment.
Duckfone requires an Operational Resilience as a Service® (ORAAS) subscription, available in 1-, 3-, 5-, and 7-year terms. Each subscription includes ZERO Cloud Portal enrollment, hardware warranty, technical phone support, and web support for the selected term. ORAAS-COTERM is available for subscription renewal and co-term enrollment.
1 YearORAAS-FONE-1Y
3 YearsORAAS-FONE-3Y
5 YearsORAAS-FONE-5Y
7 YearsORAAS-FONE-7Y
Duckfone Resources
Product documentation and
support.
Duckfone FAQ
Answers to common questions about Duckfone, its connectivity,
deployment options, and management.
Duckfone is a compact cellular gateway designed for branch, edge, retail, and remote infrastructure. It combines four serial console ports, Gigabit Ethernet, dual-SIM global 4G LTE, PoE+ power, and secure remote access in a small field-ready appliance.
Duckfone is a cellular gateway with out-of-band management capabilities. It can provide primary or secondary cellular connectivity while also providing serial console access and secure out-of-band management for connected infrastructure.
Duckfone provides four RJ45 RS-232 Cisco straight serial console ports for direct connection to compatible network and infrastructure devices.
Yes. Its global 4G LTE cellular connection can provide a separate management path for remote access and remediation when normal wired connectivity is unavailable.
Duckfone is managed through Gearlinx ZERO, which provides centralized access, visibility, lifecycle management, warranty, and support across deployments. Local WebUI and CLI remain available for device-level administration.
Duckfone uses Power over Ethernet (PoE+). If the connected network equipment does not provide PoE+, a compatible PoE+ injector can provide power.
Security and authentication capabilities include WireGuard VPN, TACACS+, RADIUS, Active Directory/OpenLDAP, local fallback, and OpenID single sign-on through ZERO.
Duckfone is designed for distributed environments such as branch offices, retail sites, kiosks, ATMs, digital signage, video cameras, smart-building infrastructure, temporary sites, and remote locations where compact cellular connectivity and remote recovery are valuable.
See Duckfone in your environment.
Talk with Gearlinx about your remote sites, cellular requirements, serial console needs, and deployment architecture.
